Project Overview

In the Ginkgo project a mixed-use commercial and office development I worked closely with the lead architect to translate the design intent into an executable reality through detailed 3D modeling. One of the most complex and defining features was a tree motif, whose intricate branches extended across the entire facade. To achieve this,

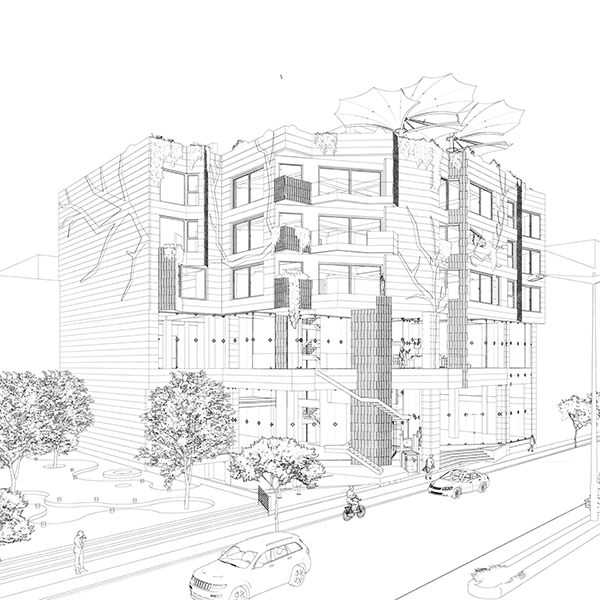

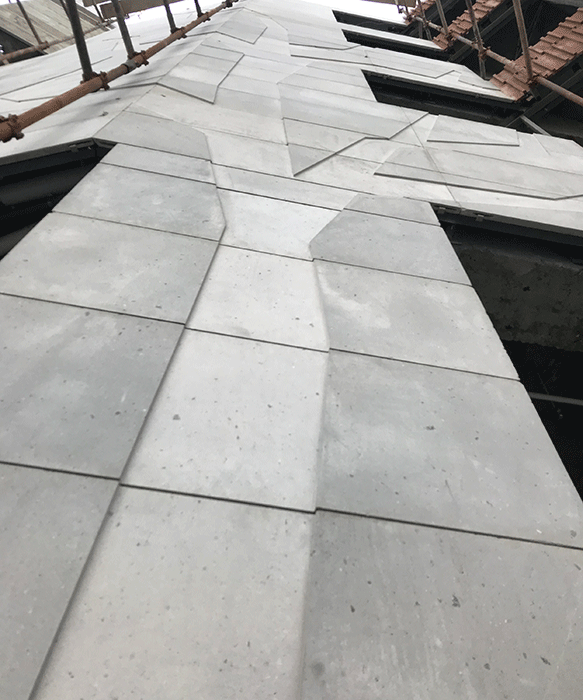

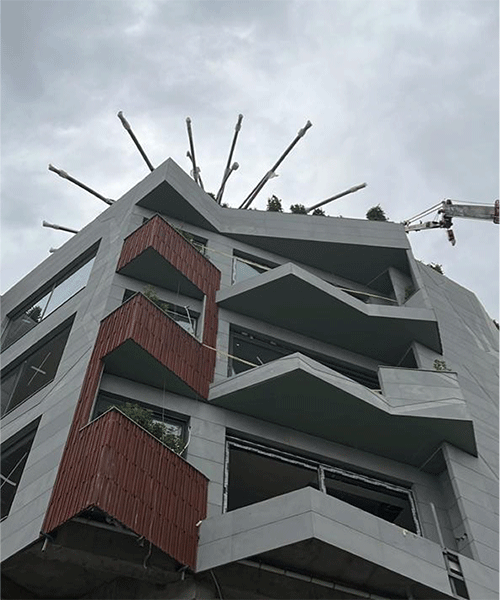

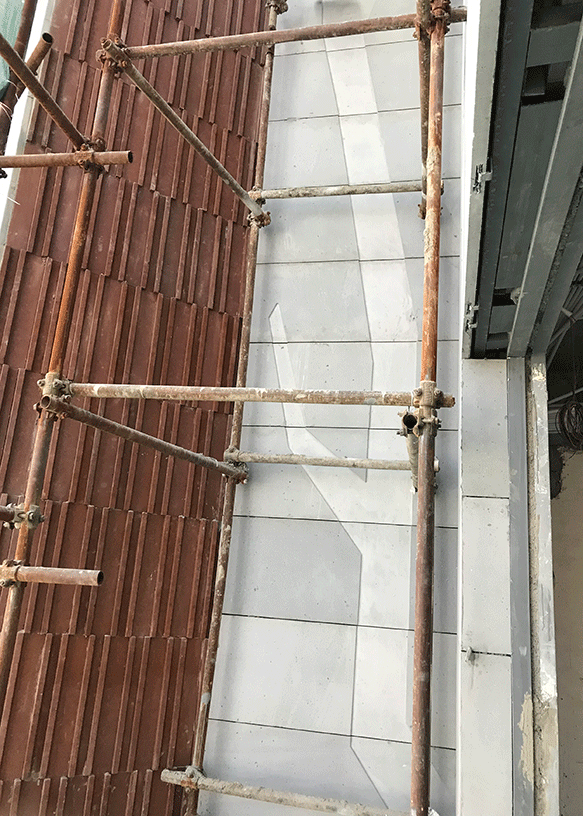

I coordinated CNC fabrication off-site and oversaw the on-site assembly of individual stone elements, composing the facade like an enormous, interlocking puzzle.We implemented a dry facade installation system and developed a custom mounting solution to address constraints in both space and budget. Additional challenges included the integration of a rooftop shading structure, the design of a prefabricated stair core at the front elevation, and the vertical coordination of mechanical system levels—all requiring close collaboration with structural and MEP consultants.

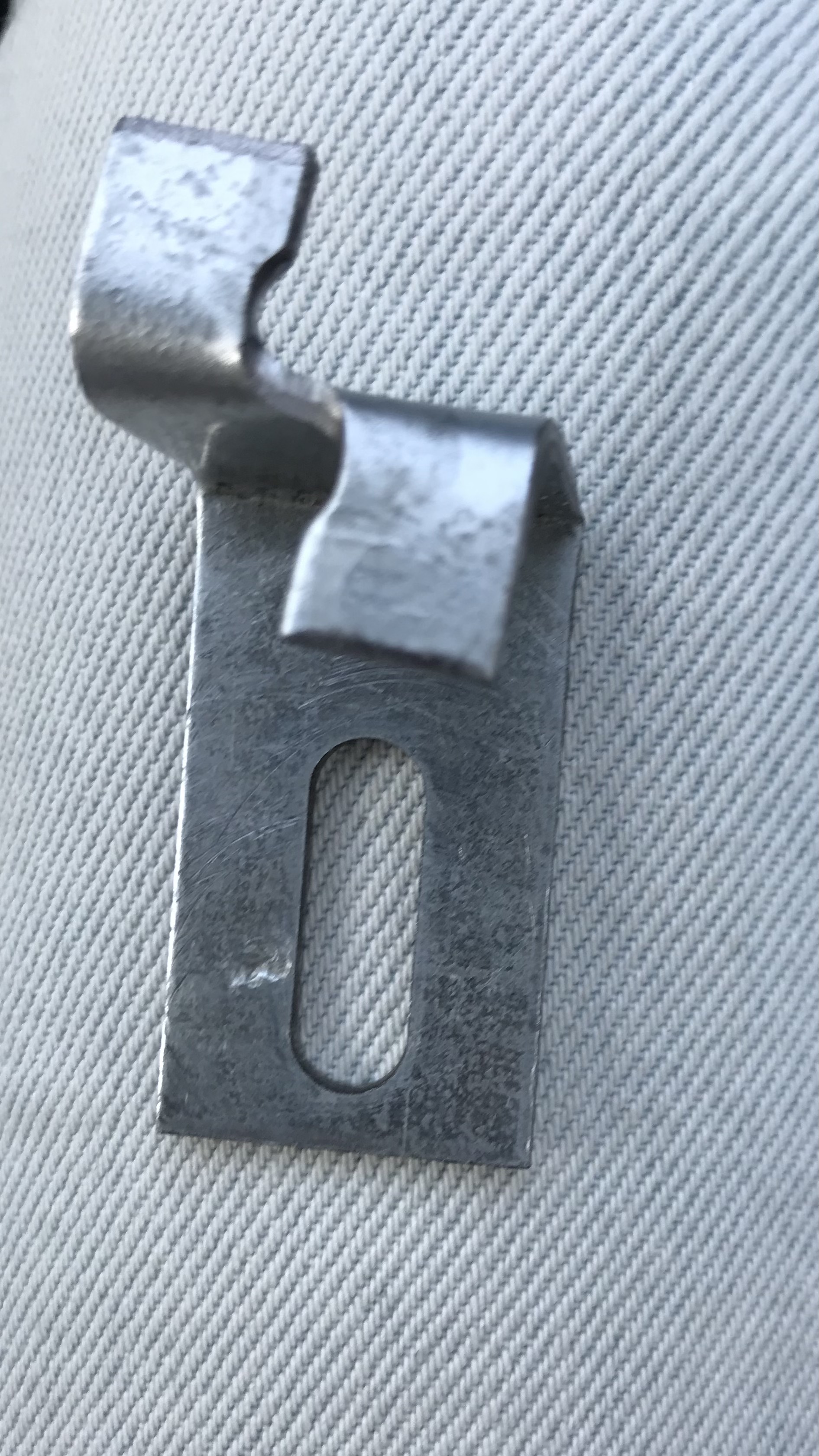

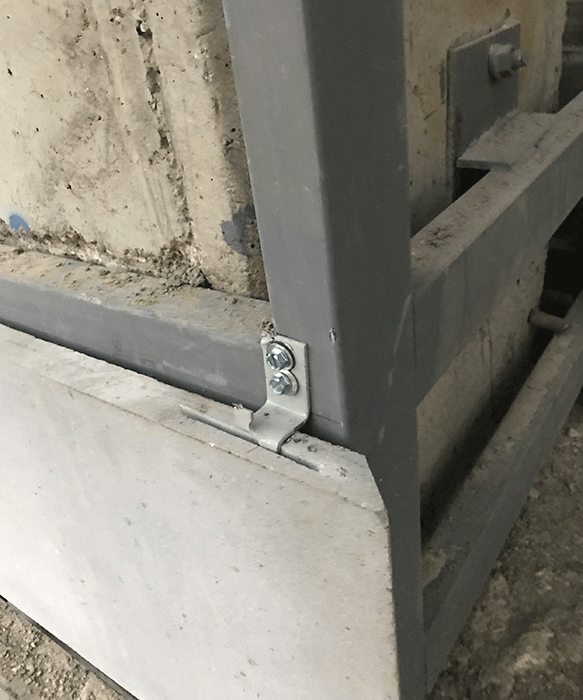

To support the stone elements, we designed and manufactured custom clips using 3mm galvanized steel plates. These clips were specifically engineered to accommodate the weight and shape of each CNC-cut piece, ensuring precise alignment and long-term durability. Their modular design also facilitated on-site assembly and adjustment during installation.

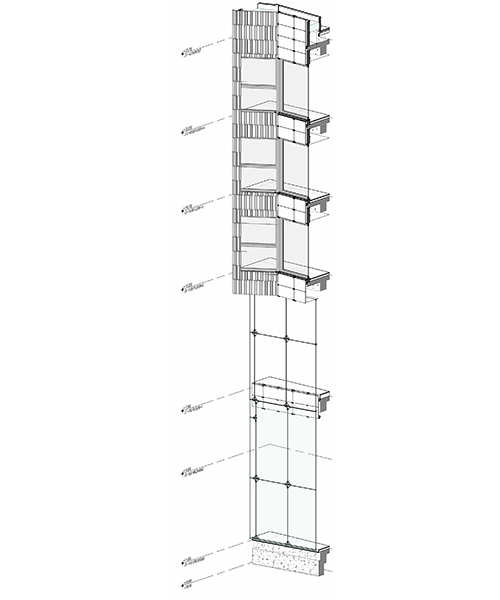

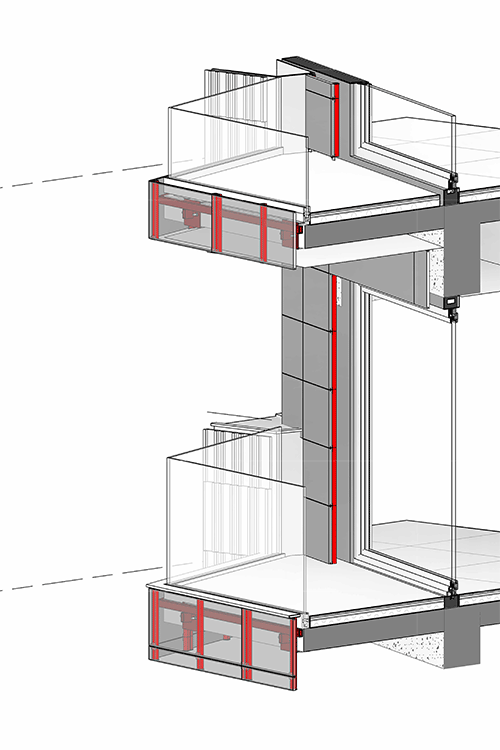

To address the complexity of the facade installation, we first developed a mesh of horizontal and vertical steel profiles to act as the structural base. This framework served as the reference for generating the as-built drawings. The final facade design was then overlaid onto this structure, allowing us to accurately align every branch of the tree motif.Following this, we coordinated the CNC cutting process based on the finalized model. Each stone piece was precisely fabricated off-site and later assembled on-site using custom-designed connection details derived directly from our technical drawings. This method ensured both accuracy and efficiency during installation.
